20、RocketMQ 源码解析 - 事务消息
版本
基于rocketmq-all-4.3.1版本；
简介
1、 事务消息流程；
-
应用程序事务发起者发送事务Prepare消息到MQ的broker端，发送成功后，Broker会回调事务监听器的本地事务执行方法执行本地事务
-
RocketMQ的broker收到Prepare消息后，先对消息的topic与消费队列进行备份，然后存储到主题为 RMQ_SYS_TRANS_HALF_TOPIC 的队列中（只有一个队列）
-
broker端启动时会启动一个定时任务，取出RMQ_SYS_TRANS_HALF_TOPIC中的消息向消息的发送者（生产组中的任意一个Producer）发起回查。发送端根据本地事务的具体执行状态返回提交/回滚/事务未知状态
-
如果返回提交/回滚则broker对事务消息进行提交或者回滚
-
如果返回了未知，则等待下次继续进行回查。达到回查最大次数依旧无法获取事务状态的消息，broker会对该事务消息做回滚操作。
-
如果是提交事务，将事务消息恢复，写入到原始的Topic中，然后向RMQ_SYS_TRANS_OP_HALF_TOPIC的队列中写入一条消息。消息体就是当前这条事务消息的队列偏移值
-
如果是回滚事务，只是向RMQ_SYS_TRANS_OP_HALF_TOPIC的队列中写入一条消息。消息体就是当前这条事务消息的队列偏移值

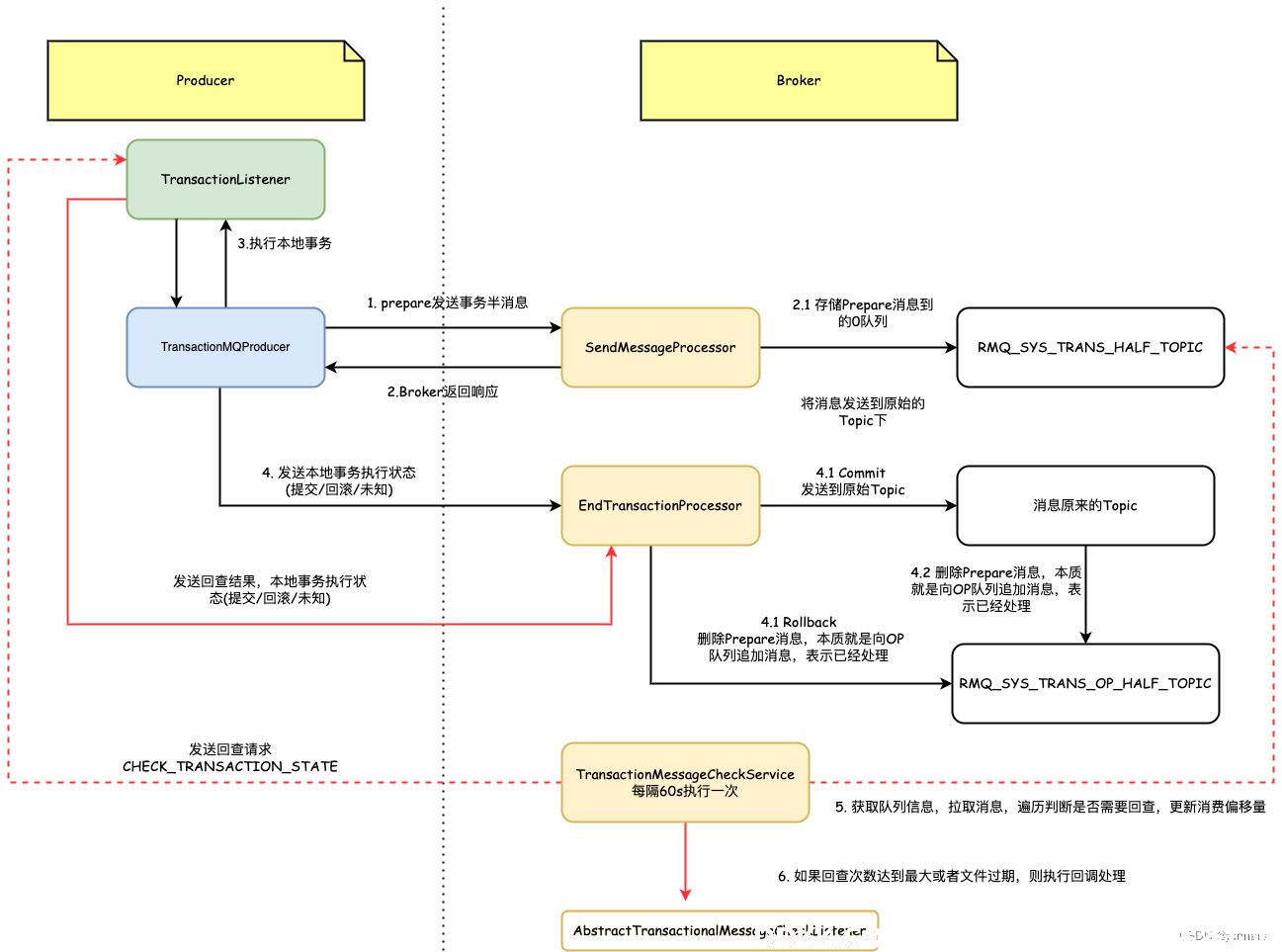

2、 整体的交互过程；
3、 为什么要采用额外的两个Topic来实现事务消息呢？；
- 为了让消费端不能消费Prepare消息，将Prepare消息先写入到RMQ_SYS_TRANS_HALF_TOPIC的队列中。这样的好处就是服务端处理发送事务Prepare消息的逻辑与普通消息的逻辑没什么区别，可以直接复用，只是额外做一下判断即可
- RocketMQ所有的消息都是追加的方式写入到文件中，无论是提交或者回滚我们都不能直接修改或者删除原来的Prepare消息。这样会导致很多的脏页，严重影响性能。所以删除和修改就是向另一个RMQ_SYS_TRANS_HALF_TOPIC的队列里写入一条消息。这样当事务回查时，先从此队列中查询，如果找不到，说明是未知状态，此时需要再次回查
- 以上这样做的缺点就是：所有消息都写入RMQ_SYS_TRANS_HALF_TOPIC队列，如果事务消息较多可能有瓶颈。并且消息会被存储多次
4、 如果回查次数达到最大值或者文件已经过期，当前版本只是打印日志如果Broker发现消息是未知状态，当再次处理时会重新追加这条消息；
发送事务消息
1、 发送事务消息使用TransactionMQProducer，此类继承DefaultMQProducer委托DefaultMQProducerImpl执行发送逻辑；
@Override
public TransactionSendResult sendMessageInTransaction(final Message msg,
final Object arg) throws MQClientException {
if (null == this.transactionListener) {
throw new MQClientException("TransactionListener is null", null);
}
return this.defaultMQProducerImpl.sendMessageInTransaction(msg, null, arg);
}
- DefaultMQProducerImpl#sendMessageInTransaction是发送的核心方法。主要逻辑
- 校验事务监听器和消息相关配置（消息、topic、消息大小等）
- 设置消息的事务属性，表示这是一个事务prepare消息。设置生产者组。用于回查本地事务，从生产者组中选择随机选择一个生产者。避免由于生产者挂掉导致一直回查失败
- 发送prepare消息，返回成功结果后（
SEND_OK）才执行本地回调事务监听器transactionListener。如果发送发生异常，则不会执行本地事务监听器 - 发送本地处理结果给Broker，Broker根据状态回滚或者提交
public TransactionSendResult sendMessageInTransaction(final Message msg,
final LocalTransactionExecuter localTransactionExecuter, final Object arg)
throws MQClientException {
// 校验是否配置事务监听器
TransactionListener transactionListener = getCheckListener();
if (null == localTransactionExecuter && null == transactionListener) {
throw new MQClientException("tranExecutor is null", null);
}
Validators.checkMessage(msg, this.defaultMQProducer);
SendResult sendResult = null;
//设置属性，表示这是一个Prepare消息
MessageAccessor.putProperty(msg, MessageConst.PROPERTY_TRANSACTION_PREPARED, "true");
//设置生产者组。用于回查本地事务，从生产者组中选择随机选择一个生产者。避免由于生产者挂掉导致一直回查失败
MessageAccessor.putProperty(msg, MessageConst.PROPERTY_PRODUCER_GROUP, this.defaultMQProducer.getProducerGroup());
try {
sendResult = this.send(msg);
} catch (Exception e) {
throw new MQClientException("send message Exception", e);
}
LocalTransactionState localTransactionState = LocalTransactionState.UNKNOW;
Throwable localException = null;
switch (sendResult.getSendStatus()) {
case SEND_OK: {
try {
// 事务ID
if (sendResult.getTransactionId() != null) {
msg.putUserProperty("__transactionId__", sendResult.getTransactionId());
}
//UNIQ_KEY，客户端发送时生成的唯一ID
String transactionId = msg.getProperty(MessageConst.PROPERTY_UNIQ_CLIENT_MESSAGE_ID_KEYIDX);
if (null != transactionId && !"".equals(transactionId)) {
msg.setTransactionId(transactionId);
}
// 执行本地配合的transactionListener逻辑。localTransactionExecuter已经过时
if (null != localTransactionExecuter) {
localTransactionState = localTransactionExecuter.executeLocalTransactionBranch(msg, arg);
} else if (transactionListener != null) {
log.debug("Used new transaction API");
//如果这个执行出现异常可能导致localTransactionState默认就是UNKNOW，如果返回null，则需要赋值一个默认值UNKNOW
localTransactionState = transactionListener.executeLocalTransaction(msg, arg);
}
if (null == localTransactionState) {
localTransactionState = LocalTransactionState.UNKNOW;
}
if (localTransactionState != LocalTransactionState.COMMIT_MESSAGE) {
log.info("executeLocalTransactionBranch return {}", localTransactionState);
log.info(msg.toString());
}
} catch (Throwable e) {
log.info("executeLocalTransactionBranch exception", e);
log.info(msg.toString());
localException = e;
}
}
break;
// 未发送成功，设置回滚状态
case FLUSH_DISK_TIMEOUT:
case FLUSH_SLAVE_TIMEOUT:
case SLAVE_NOT_AVAILABLE:
localTransactionState = LocalTransactionState.ROLLBACK_MESSAGE;
break;
default:
break;
}
try {
// 发送本地处理结果给Broker
this.endTransaction(sendResult, localTransactionState, localException);
} catch (Exception e) {
log.warn("local transaction execute " + localTransactionState + ", but end broker transaction failed", e);
}
TransactionSendResult transactionSendResult = new TransactionSendResult();
transactionSendResult.setSendStatus(sendResult.getSendStatus());
transactionSendResult.setMessageQueue(sendResult.getMessageQueue());
transactionSendResult.setMsgId(sendResult.getMsgId());
transactionSendResult.setQueueOffset(sendResult.getQueueOffset());
transactionSendResult.setTransactionId(sendResult.getTransactionId());
transactionSendResult.setLocalTransactionState(localTransactionState);
return transactionSendResult;
}
- DefaultMQProducerImpl#endTransaction发送本地处理结果给Broker，本地处理结果会做转换
- 如果
localTransactionState==COMMIT_MESSAGE，设置为MessageSysFlag.TRANSACTION_COMMIT_TYPE( 0x2 << 2;//1000) - 如果
localTransactionState==ROLLBACK_MESSAGE，设置为MessageSysFlag.TRANSACTION_ROLLBACK_TYPE(0x3 << 2;//1100) - 如果
localTransactionState==UNKNOW，设置为MessageSysFlag.TRANSACTION_NOT_TYPE(0;//0000)
public void endTransaction(
final SendResult sendResult,
final LocalTransactionState localTransactionState,
final Throwable localException) throws RemotingException, MQBrokerException, InterruptedException, UnknownHostException {
final MessageId id;
// 服务端的消息ID
if (sendResult.getOffsetMsgId() != null) {
id = MessageDecoder.decodeMessageId(sendResult.getOffsetMsgId());
} else {
id = MessageDecoder.decodeMessageId(sendResult.getMsgId());
}
String transactionId = sendResult.getTransactionId();
// prepare发送到哪个broker，就提交或者回滚在哪个Broker
final String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(sendResult.getMessageQueue().getBrokerName());
EndTransactionRequestHeader requestHeader = new EndTransactionRequestHeader();
requestHeader.setTransactionId(transactionId);
//事务消息的提交偏移量
requestHeader.setCommitLogOffset(id.getOffset());
switch (localTransactionState) {
case COMMIT_MESSAGE:
requestHeader.setCommitOrRollback(MessageSysFlag.TRANSACTION_COMMIT_TYPE);
break;
case ROLLBACK_MESSAGE:
requestHeader.setCommitOrRollback(MessageSysFlag.TRANSACTION_ROLLBACK_TYPE);
break;
case UNKNOW:
requestHeader.setCommitOrRollback(MessageSysFlag.TRANSACTION_NOT_TYPE);
break;
default:
break;
}
requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
requestHeader.setTranStateTableOffset(sendResult.getQueueOffset());
requestHeader.setMsgId(sendResult.getMsgId());
// 携带本地执行事务回调的异常信息
String remark = localException != null ? ("executeLocalTransactionBranch exception: " + localException.toString()) : null;
//发送事务本地处理结果给Broker
this.mQClientFactory.getMQClientAPIImpl().endTransactionOneway(brokerAddr, requestHeader, remark,
this.defaultMQProducer.getSendMsgTimeout());
}
Broker处理Prepare消息
- 与处理普通消息一样，事务的prepare消息也是通过SendMessageProcessor#processRequest处理。针对事务Prepare消息的存储与普通消息不同的是，其委托TransactionalMessageService进行处理
//获取producer发送的时候设置的事务消息属性[prepare消息 commit消息]
String traFlag = oriProps.get(MessageConst.PROPERTY_TRANSACTION_PREPARED);
if (traFlag != null && Boolean.parseBoolean(traFlag)) {
//是否允许事务消息存储，默认允许
if (this.brokerController.getBrokerConfig().isRejectTransactionMessage()) {
response.setCode(ResponseCode.NO_PERMISSION);
response.setRemark(
"the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1()
+ "] sending transaction message is forbidden");
return response;
}
putMessageResult = this.brokerController.getTransactionalMessageService().prepareMessage(msgInner);
} else {
putMessageResult = this.brokerController.getMessageStore().putMessage(msgInner);
}
- TransactionalMessageServiceImpl#prepareMessage调用TransactionalMessageBridge#putHalfMessage进行预存储事务消息，将消息原始的Topic即QueueId信息备份到属性中（为了后续提交时使用），将消息的原始Topic更改为RMQ_SYS_TRANS_HALF_TOPIC，此Topic只有一个队列0。默认是调用DefaultMessageStore#putMessage。这里就跟普通消息的存储没有任何区别了。
//TransactionalMessageServiceImpl#prepareMessage
@Override
public PutMessageResult prepareMessage(MessageExtBrokerInner messageInner) {
return transactionalMessageBridge.putHalfMessage(messageInner);
}
private MessageExtBrokerInner parseHalfMessageInner(MessageExtBrokerInner msgInner) {
// 把消息的原始topic及队列信息存储到属性中，因为要写到事务prepare的主题RMQ_SYS_TRANS_HALF_TOPIC的队列里
MessageAccessor.putProperty(msgInner, MessageConst.PROPERTY_REAL_TOPIC, msgInner.getTopic());
MessageAccessor.putProperty(msgInner, MessageConst.PROPERTY_REAL_QUEUE_ID,
String.valueOf(msgInner.getQueueId()));
// 去掉事务标记，设置为0
msgInner.setSysFlag(
MessageSysFlag.resetTransactionValue(msgInner.getSysFlag(), MessageSysFlag.TRANSACTION_NOT_TYPE));
// prepare消息的主题RMQ_SYS_TRANS_HALF_TOPIC
msgInner.setTopic(TransactionalMessageUtil.buildHalfTopic());
// RMQ_SYS_TRANS_HALF_TOPIC只有一个队列
msgInner.setQueueId(0);
msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgInner.getProperties()));
return msgInner;
}
//TransactionalMessageBridge#putHalfMessage
public PutMessageResult putHalfMessage(MessageExtBrokerInner messageInner) {
// 将消息存储到CommitLog或者其他的存储中
return store.putMessage(parseHalfMessageInner(messageInner));
}
3、 从上面可知，事务Prepare消息的存储与普通消息并没有太大区别，那Broker是如何保证Prepare不会被Consume消费掉的呢？主要通过一下方式；
-
旧的实现方式（废弃）
- Broker在消息写入CommitLog的时候会判断消息类型，如果是prepare或者rollback的事务消息，ConsumeQueue的queueOffset不会增加（queueOffset每追加一条就会自增）。
- Broker在构造ConsumeQueue时会判断prepare和rollback消息，如果是则不会将消息写入ConsumeQueue。即此消息不会在ConsumeQueue中，所以Consumer也就不会消费
新的实现方式：更改原有的Topic，只有Commit消息后才会将其发送到原始的Topic下，这样就保证没有Commit前，Consumer无法消费
- 查看CommitLog.DefaultAppendMessageCallback#doAppend是事务消息相关的判断。由于前面将Topic换成事务的Topic，并且将事务的标记去掉了，所以这里标记永远是TRANSACTION_NOT_TYPE。之所以有这个逻辑，我猜测是之前的事务实现方式（没有更改Topic的方式）
public AppendMessageResult doAppend(final long fileFromOffset, final ByteBuffer byteBuffer, final int maxBlank,final MessageExtBrokerInner msgInner) {
...省略...
// Record ConsumeQueue information
keyBuilder.setLength(0);
keyBuilder.append(msgInner.getTopic());
keyBuilder.append('-');
keyBuilder.append(msgInner.getQueueId());
String key = keyBuilder.toString();
Long queueOffset = CommitLog.this.topicQueueTable.get(key);
if (null == queueOffset) {
queueOffset = 0L;
CommitLog.this.topicQueueTable.put(key, queueOffset);
}
//事务消息Prepare和Rollback消息，队列偏移量都设置的是0
final int tranType = MessageSysFlag.getTransactionValue(msgInner.getSysFlag());
switch (tranType) {
// Prepared and Rollback message is not consumed, will not enter the
// consumer queuec
case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
queueOffset = 0L;
break;
case MessageSysFlag.TRANSACTION_NOT_TYPE:
case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
default:
break;
}
...省略...
// 只有事务TRANSACTION_COMMIT_TYPE消息和TRANSACTION_NOT_TYPE才会设置队列偏移量
switch (tranType) {
case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
break;
case MessageSysFlag.TRANSACTION_NOT_TYPE:
case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
// The next update ConsumeQueue information
CommitLog.this.topicQueueTable.put(key, ++queueOffset);
break;
default:
break;
}
return result;
}
- 查看DefaultMessageStore.CommitLogDispatcherBuildConsumeQueue#dispatch是异步构造ConsumeQueue的地方。这里可以看到，如果是Prepare和Rollback消息，并不会构造。这样Consumer也就无法消费了
class CommitLogDispatcherBuildConsumeQueue implements CommitLogDispatcher {
@Override
public void dispatch(DispatchRequest request) {
final int tranType = MessageSysFlag.getTransactionValue(request.getSysFlag());
switch (tranType) {
case MessageSysFlag.TRANSACTION_NOT_TYPE:
case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
DefaultMessageStore.this.putMessagePositionInfo(request);
break;
// 对于prepare和rollback消息不会构造ConsumeQueue
case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
break;
}
}
}
Broker处理提交/回滚消息
- Producer发送本地结果给Broker，调用RequestCode.END_TRANSACTION命令，此命令在broker端是通过EndTransactionProcessor来进行处理的。EndTransactionProcessor#processRequest处理逻辑如下
- 只有Master节点可以处理，打印相关日志。只有提交或者回滚的消息才会向下执行
- 如果是回滚消息，根据偏移量从RMQ_SYS_TRANS_HALF_TOPIC查询出提交的消息，并检查Prepare消息的正确性。删除回滚消息（其实就是向RMQ_SYS_TRANS_OP_HALF_TOPIC主题写入消息，tag是d），标识此消息已经被删除
- 如果是提交消息，根据偏移量从RMQ_SYS_TRANS_HALF_TOPIC查询出提交的消息，并检查Prepare消息的正确性。恢复原始消息，包括恢复原始Topic、Queue等，并且清除事务属性，并且将原始消息存储到CommitLog中，存储成功时删除prepare消息（其实就是向RMQ_SYS_TRANS_OP_HALF_TOPIC主题写入消息，tag是d），标识此消息已经被删除
- EndTransactionProcessor#processRequest源码
@Override
public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request) throws
RemotingCommandException {
final RemotingCommand response = RemotingCommand.createResponseCommand(null);
final EndTransactionRequestHeader requestHeader =
(EndTransactionRequestHeader)request.decodeCommandCustomHeader(EndTransactionRequestHeader.class);
LOGGER.info("Transaction request:{}", requestHeader);
// 从节点不允许处理事务消息
if (BrokerRole.SLAVE == brokerController.getMessageStoreConfig().getBrokerRole()) {
response.setCode(ResponseCode.SLAVE_NOT_AVAILABLE);
LOGGER.warn("Message store is slave mode, so end transaction is forbidden. ");
return response;
}
// 事务回查标记，是否为事务回查（仅仅打印日志），只有提交或者回滚的消息才向后处理
if (requestHeader.getFromTransactionCheck()) {
switch (requestHeader.getCommitOrRollback()) {
case MessageSysFlag.TRANSACTION_NOT_TYPE: {
LOGGER.warn("Check producer[{}] transaction state, but it's pending status."
+ "RequestHeader: {} Remark: {}",
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
requestHeader.toString(),
request.getRemark());
return null;
}
case MessageSysFlag.TRANSACTION_COMMIT_TYPE: {
LOGGER.warn("Check producer[{}] transaction state, the producer commit the message."
+ "RequestHeader: {} Remark: {}",
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
requestHeader.toString(),
request.getRemark());
break;
}
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE: {
LOGGER.warn("Check producer[{}] transaction state, the producer rollback the message."
+ "RequestHeader: {} Remark: {}",
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
requestHeader.toString(),
request.getRemark());
break;
}
default:
return null;
}
} else {
switch (requestHeader.getCommitOrRollback()) {
case MessageSysFlag.TRANSACTION_NOT_TYPE: {
LOGGER.warn("The producer[{}] end transaction in sending message, and it's pending status."
+ "RequestHeader: {} Remark: {}",
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
requestHeader.toString(),
request.getRemark());
return null;
}
case MessageSysFlag.TRANSACTION_COMMIT_TYPE: {
break;
}
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE: {
LOGGER.warn("The producer[{}] end transaction in sending message, rollback the message."
+ "RequestHeader: {} Remark: {}",
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
requestHeader.toString(),
request.getRemark());
break;
}
default:
return null;
}
}
OperationResult result = new OperationResult();
if (MessageSysFlag.TRANSACTION_COMMIT_TYPE == requestHeader.getCommitOrRollback()) {
// 根据之前提交的内部事务topic的偏移量查出来提交的这条消息
result = this.brokerController.getTransactionalMessageService().commitMessage(requestHeader);
if (result.getResponseCode() == ResponseCode.SUCCESS) {
// 校验查询出来的这条消息是否正确
RemotingCommand res = checkPrepareMessage(result.getPrepareMessage(), requestHeader);
if (res.getCode() == ResponseCode.SUCCESS) {
// 恢复原始消息
MessageExtBrokerInner msgInner = endMessageTransaction(result.getPrepareMessage());
msgInner.setSysFlag(MessageSysFlag.resetTransactionValue(msgInner.getSysFlag(), requestHeader.getCommitOrRollback()));
msgInner.setQueueOffset(requestHeader.getTranStateTableOffset());
msgInner.setPreparedTransactionOffset(requestHeader.getCommitLogOffset());
msgInner.setStoreTimestamp(result.getPrepareMessage().getStoreTimestamp());
//存储到CommitLog文件中，如果成功，则删除半消息
RemotingCommand sendResult = sendFinalMessage(msgInner);
if (sendResult.getCode() == ResponseCode.SUCCESS) {
// 删除prepare消息，其实就是向RMQ_SYS_TRANS_OP_HALF_TOPIC主题写入消息，tag是d
// 因为RocketMQ是追加消息，不支持更改和删除，所以删除就是在特有的主题下新增一条消息
// 这样无论是提交还是回滚，都可以找到，以此来判断是回滚还是提交了。如果没有则是未知状态
this.brokerController.getTransactionalMessageService().deletePrepareMessage(result.getPrepareMessage());
}
return sendResult;
}
return res;
}
} else if (MessageSysFlag.TRANSACTION_ROLLBACK_TYPE == requestHeader.getCommitOrRollback()) {
result = this.brokerController.getTransactionalMessageService().rollbackMessage(requestHeader);
if (result.getResponseCode() == ResponseCode.SUCCESS) {
RemotingCommand res = checkPrepareMessage(result.getPrepareMessage(), requestHeader);
if (res.getCode() == ResponseCode.SUCCESS) {
this.brokerController.getTransactionalMessageService().deletePrepareMessage(result.getPrepareMessage());
}
return res;
}
}
response.setCode(result.getResponseCode());
response.setRemark(result.getResponseRemark());
return response;
}
- TransactionalMessageServiceImpl#deletePrepareMessage删除消息（并不是物理删除，而是追加），删除消息本质是向RMQ_SYS_TRANS_OP_HALF_TOPIC主题的队列追加一条有特定tag的消息
TransactionalMessageServiceImpl#deletePrepareMessage
@Override
public boolean deletePrepareMessage(MessageExt msgExt) {
if (this.transactionalMessageBridge.putOpMessage(msgExt, TransactionalMessageUtil.REMOVETAG)) {
log.info("Transaction op message write successfully. messageId={}, queueId={} msgExt:{}", msgExt.getMsgId(), msgExt.getQueueId(), msgExt);
return true;
} else {
log.error("Transaction op message write failed. messageId is {}, queueId is {}", msgExt.getMsgId(), msgExt.getQueueId());
return false;
}
}
// TransactionalMessageBridge#putOpMessage 向RMQ_SYS_TRANS_OP_HALF_TOPIC追加消息
public boolean putOpMessage(MessageExt messageExt, String opType) {
// messageExt是Prepare消息
// 构建一个消息队列
MessageQueue messageQueue = new MessageQueue(messageExt.getTopic(),
this.brokerController.getBrokerConfig().getBrokerName(), messageExt.getQueueId());
if (TransactionalMessageUtil.REMOVETAG.equals(opType)) {
return addRemoveTagInTransactionOp(messageExt, messageQueue);
}
return true;
}
//TransactionalMessageBridge#addRemoveTagInTransactionOp
private boolean addRemoveTagInTransactionOp(MessageExt messageExt, MessageQueue messageQueue) {
Message message = new Message(TransactionalMessageUtil.buildOpTopic(), TransactionalMessageUtil.REMOVETAG,
String.valueOf(messageExt.getQueueOffset()).getBytes(TransactionalMessageUtil.charset));
writeOp(message, messageQueue);
return true;
}
//TransactionalMessageBridge#writeOp 调用存储putMessage
private void writeOp(Message message, MessageQueue mq) {
//此处mq指的是Prepare消息队列（RMQ_SYS_TRANS_HALF_TOPIC主题的）
//key=RMQ_SYS_TRANS_HALF_TOPIC队列与value=RMQ_SYS_TRANS_OP_HALF_TOPIC缓存
MessageQueue opQueue;
if (opQueueMap.containsKey(mq)) {
opQueue = opQueueMap.get(mq);
} else {
// 创建一个RMQ_SYS_TRANS_OP_HALF_TOPIC主题的消息队列
opQueue = getOpQueueByHalf(mq);
// 如果已经存在不会覆盖已有的值，直接返回已有的值
MessageQueue oldQueue = opQueueMap.putIfAbsent(mq, opQueue);
if (oldQueue != null) {
opQueue = oldQueue;
}
}
//TODO by jannal 此处为什么会为null ??
if (opQueue == null) {
opQueue = new MessageQueue(TransactionalMessageUtil.buildOpTopic(), mq.getBrokerName(), mq.getQueueId());
}
putMessage(makeOpMessageInner(message, opQueue));
}
Broker事务回查
1、 正常情况下如果客户端在处理回调后，会返回给Broker相关的状态假设Producer此时挂了，或者因为网络原因调用Broker失败了这个时候就需要Broker事务定期回查；
2. TransactionalMessageCheckService是一个服务线程，在Broker启动时，此服务线程会启动。默认60s执行一次回查，每次执行的超时时间是6s，最大回查次数15次。调用TransactionalMessageService#check方法做消息回查
BrokerController#start
...省略....
if (BrokerRole.SLAVE != messageStoreConfig.getBrokerRole()) {
if (this.transactionalMessageCheckService != null) {
log.info("Start transaction service!");
this.transactionalMessageCheckService.start();
}
}
TransactionalMessageCheckService#run
@Override
public void run() {
log.info("Start transaction check service thread!");
// 默认60s
long checkInterval = brokerController.getBrokerConfig().getTransactionCheckInterval();
while (!this.isStopped()) {
this.waitForRunning(checkInterval);
}
log.info("End transaction check service thread!");
}
@Override
protected void onWaitEnd() {
//默认6000ms
long timeout = brokerController.getBrokerConfig().getTransactionTimeOut();
//默认最大检查15次
int checkMax = brokerController.getBrokerConfig().getTransactionCheckMax();
long begin = System.currentTimeMillis();
log.info("Begin to check prepare message, begin time:{}", begin);
this.brokerController.getTransactionalMessageService().check(timeout, checkMax, this.brokerController.getTransactionalMessageCheckListener());
log.info("End to check prepare message, consumed time:{}", System.currentTimeMillis() - begin);
}
- TransactionalMessageService#check主要流程
- 根据
RMQ_SYS_TRANS_HALF_TOPIC查找队列，目前只有一个0队列 - 遍历
RMQ_SYS_TRANS_HALF_TOPIC的MessageQueue，每个MessageQueue的处理时间是60s - 通过
RMQ_SYS_TRANS_HALF_TOPIC的MessageQueue作为Key从缓存中获取RMQ_SYS_TRANS_OP_HALF_TOPIC的MessageQueue，如果不存在，则创建一个 - 使用
CID_RMQ_SYS_TRANS消费组拉取op队列里的消息，一次拉取32条 - 判断prepare中获取到的消息与OP中的对比，如果OP中包含此消息，则不回查。如果回查超过15次、消息过期，则直接跳过
- 如果处理时间已经超过了事务的回查时间，则进行回查，否则继续拉取消息。
- 将消息重新追加prepare消息队列并更新偏移量
- 发送回查消息给Producer
- 更新prepare队列和op队列的消费进度
- TransactionalMessageService#check源码
@Override
public void check(long transactionTimeout, int transactionCheckMax,
AbstractTransactionalMessageCheckListener listener) {
try {
String topic = MixAll.RMQ_SYS_TRANS_HALF_TOPIC;
// RMQ_SYS_TRANS_HALF_TOPIC 只有一个队列
Set<MessageQueue> msgQueues = transactionalMessageBridge.fetchMessageQueues(topic);
if (msgQueues == null || msgQueues.size() == 0) {
log.warn("The queue of topic is empty :" + topic);
return;
}
log.info("Check topic={}, queues={}", topic, msgQueues);
for (MessageQueue messageQueue : msgQueues) {
// 队列处理开始时间
long startTime = System.currentTimeMillis();
// 一条prepare消息队列对应一个op队列(提交或回滚后)，实际就一个队列
MessageQueue opQueue = getOpQueue(messageQueue);
// 获取prepare消息队列最新的的消费偏移量
long halfOffset = transactionalMessageBridge.fetchConsumeOffset(messageQueue);
// 获取op消息队列最新的消费偏移量
long opOffset = transactionalMessageBridge.fetchConsumeOffset(opQueue);
log.info("Before check, the queue={} msgOffset={} opOffset={}", messageQueue, halfOffset, opOffset);
if (halfOffset < 0 || opOffset < 0) {
log.error("MessageQueue: {} illegal offset read: {}, op offset: {},skip this queue", messageQueue,
halfOffset, opOffset);
continue;
}
// 已经被处理的Op消息的偏移量
List<Long> doneOpOffset = new ArrayList<>();
// 已经被删除的prepare消息
HashMap<Long, Long> removeMap = new HashMap<>();
// 确认prepare消息是否已经被删除。主要目的是为了避免重复调用事务回查请求
PullResult pullResult = fillOpRemoveMap(removeMap, opQueue, opOffset, halfOffset, doneOpOffset);
if (null == pullResult) {
log.error("The queue={} check msgOffset={} with opOffset={} failed, pullResult is null",
messageQueue, halfOffset, opOffset);
continue;
}
// single thread
// 获取空消息的次数
int getMessageNullCount = 1;
long newOffset = halfOffset;
// 逻辑偏移量
long i = halfOffset;
while (true) {
// 每一个MessageQueue处理时间限制在60s内
if (System.currentTimeMillis() - startTime > MAX_PROCESS_TIME_LIMIT) {
log.info("Queue={} process time reach max={}", messageQueue, MAX_PROCESS_TIME_LIMIT);
break;
}
// 如果Prepare消息已经被处理过，则直接remove
if (removeMap.containsKey(i)) {
log.info("Half offset {} has been committed/rolled back", i);
removeMap.remove(i);
} else {
// 获取当前要处理的prepare消息
GetResult getResult = getHalfMsg(messageQueue, i);
MessageExt msgExt = getResult.getMsg();
// 消息不存在，直接退出循环
if (msgExt == null) {
if (getMessageNullCount++ > MAX_RETRY_COUNT_WHEN_HALF_NULL) {
break;
}
if (getResult.getPullResult().getPullStatus() == PullStatus.NO_NEW_MSG) {
log.info("No new msg, the miss offset={} in={}, continue check={}, pull result={}", i,
messageQueue, getMessageNullCount, getResult.getPullResult());
break;
} else {
log.info("Illegal offset, the miss offset={} in={}, continue check={}, pull result={}",
i, messageQueue, getMessageNullCount, getResult.getPullResult());
i = getResult.getPullResult().getNextBeginOffset();
newOffset = i;
continue;
}
}
// 超过15次丢弃，或者消息过期了（超过了设置的文件保存时间，默认72小时）
if (needDiscard(msgExt, transactionCheckMax) || needSkip(msgExt)) {
// 默认是打印一条日志
listener.resolveDiscardMsg(msgExt);
newOffset = i + 1;
i++;
continue;
}
// 消息存储时间大于回查程序开始时间的不处理，这是一个防御
if (msgExt.getStoreTimestamp() >= startTime) {
log.info("Fresh stored. the miss offset={}, check it later, store={}", i,
new Date(msgExt.getStoreTimestamp()));
break;
}
// 消息已存储的时间差
long valueOfCurrentMinusBorn = System.currentTimeMillis() - msgExt.getBornTimestamp();
//默认超时6s
long checkImmunityTime = transactionTimeout;
//目前此属性只是在测试用例使用
String checkImmunityTimeStr = msgExt.getUserProperty(MessageConst.PROPERTY_CHECK_IMMUNITY_TIME_IN_SECONDS);
if (null != checkImmunityTimeStr) {
//checkImmunityTimeStr如果是-1，则使用transactionTimeout
checkImmunityTime = getImmunityTime(checkImmunityTimeStr, transactionTimeout);
// 给事务预留时间用于提交事务，此时不应该做回查
if (valueOfCurrentMinusBorn < checkImmunityTime) {
// 超过检查时间，重新写回prepare消息队列
if (checkPrepareQueueOffset(removeMap, doneOpOffset, msgExt, checkImmunityTime)) {
newOffset = i + 1;
i++;
continue;
}
}
} else {
// 新提交的prepare消息，暂不处理，此时可能正在提交的路上
if ((0 <= valueOfCurrentMinusBorn) && (valueOfCurrentMinusBorn < checkImmunityTime)) {
log.info("New arrived, the miss offset={}, check it later checkImmunity={}, born={}", i,
checkImmunityTime, new Date(msgExt.getBornTimestamp()));
break;
}
}
List<MessageExt> opMsg = pullResult.getMsgFoundList();
// checkImmunityTime默认是6秒，第一次可以检查的时间
// 时间超过事务超时时间、最后一条消息的存储时间减去处理的起始时间超过超时时间
// TODO valueOfCurrentMinusBorn什么情况会<=-1????
boolean isNeedCheck = (opMsg == null && valueOfCurrentMinusBorn > checkImmunityTime)
|| (opMsg != null && (opMsg.get(opMsg.size() - 1).getBornTimestamp() - startTime > transactionTimeout))
|| (valueOfCurrentMinusBorn <= -1);
if (isNeedCheck) {
// 把这个消息重新写回prepare消息队列里并更新偏移量
if (!putBackHalfMsgQueue(msgExt, i)) {
continue;
}
// 事务回查（异步线程发送），发送消息给Producer
listener.resolveHalfMsg(msgExt);
} else {
// 如果没有超时继续拉
pullResult = fillOpRemoveMap(removeMap, opQueue, pullResult.getNextBeginOffset(), halfOffset, doneOpOffset);
log.info("The miss offset:{} in messageQueue:{} need to get more opMsg, result is:{}", i,
messageQueue, pullResult);
continue;
}
}
// 消费偏移量加+1
newOffset = i + 1;
i++;
}
// 说明消费了，此时需要更新偏移量
if (newOffset != halfOffset) {
transactionalMessageBridge.updateConsumeOffset(messageQueue, newOffset);
}
long newOpOffset = calculateOpOffset(doneOpOffset, opOffset);
if (newOpOffset != opOffset) {
transactionalMessageBridge.updateConsumeOffset(opQueue, newOpOffset);
}
}
} catch (Exception e) {
e.printStackTrace();
log.error("Check error", e);
}
}
