04、RocketMQ 源码解析 - NameServer
版本声明
1、 基于rocketmq-all-4.3.1版本；
2、 如有发现分析不正确的地方欢迎指正，谢谢！；
NameServer介绍
1、 NameServer本身的高可用是通过部署多台NameServer服务NameServer互相独立，彼此之间不会通信(即多台NameServer的数据并不是强一致的)，任意一台宕机并不会影响其他的NameServer；
2、 作用；
- 维护活跃的Broker地址列表，包括Master和Slave
- 维护所有
Topic和Topic对应队列的地址列表 - 维护所有
Broker的Filter列表
3、 Broker与NameServer关系；
- 单个
Broker与所有NameServer保持长连接 Broker每隔30秒向所有NameServer发送心跳，心跳包含了自身的topic信息NameServer每隔10秒钟扫描所有存活的Broker连接，若2min内没有发送心跳信息，则断开连接Broker在启动后向所有NameServer注册，Producer在发送消息之前先从NameServer获取Broker服务器的地址列表,然后根据负载均衡算法从列表中选择一台Broker进行消息发送
4、 稳定性；
- nameserver互相独立，无状态
- nameserver不会有频繁的读写，稳定性相对高
NameServer源码分析
KVConfigManager
1、 内存级的KV存储，提供增删改查以及持久化数据的能力本质就是一个HashMap；
public class KVConfigManager {
private final NamesrvController namesrvController;
private final ReadWriteLock lock = new ReentrantReadWriteLock();
//
private final HashMap<String/* Namespace */, HashMap<String/* Key */, String/* Value */>> configTable =
new HashMap<String, HashMap<String, String>>();
public KVConfigManager(NamesrvController namesrvController) {
this.namesrvController = namesrvController;
}
public void load() {
String content = null;
try {
content = MixAll.file2String(this.namesrvController.getNamesrvConfig().getKvConfigPath());
} catch (IOException e) {
log.warn("Load KV config table exception", e);
}
if (content != null) {
KVConfigSerializeWrapper kvConfigSerializeWrapper =
KVConfigSerializeWrapper.fromJson(content, KVConfigSerializeWrapper.class);
if (null != kvConfigSerializeWrapper) {
this.configTable.putAll(kvConfigSerializeWrapper.getConfigTable());
log.info("load KV config table OK");
}
}
}
}
RouteInfoManager
1、 路由信息即Broker向NameServer注册后保存的信息，RouteInfoManager保存所有的Topic和Broker信息；
public class RouteInfoManager {
private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);
private final static long BROKER_CHANNEL_EXPIRED_TIME = 1000 * 60 * 2;
private final ReadWriteLock lock = new ReentrantReadWriteLock();
//topic列表对应的队列信息
private final HashMap<String/* topic */, List<QueueData>> topicQueueTable;
//Broker地址信息
private final HashMap<String/* brokerName */, BrokerData> brokerAddrTable;
//broker集群信息
private final HashMap<String/* clusterName */, Set<String/* brokerName */>> clusterAddrTable;
//Broker当前存活的Broker(非实时)
private final HashMap<String/* brokerAddr */, BrokerLiveInfo> brokerLiveTable;
//Broker过滤信息
private final HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
public RouteInfoManager() {
this.topicQueueTable = new HashMap<String, List<QueueData>>(1024);
this.brokerAddrTable = new HashMap<String, BrokerData>(128);
this.clusterAddrTable = new HashMap<String, Set<String>>(32);
this.brokerLiveTable = new HashMap<String, BrokerLiveInfo>(256);
this.filterServerTable = new HashMap<String, List<String>>(256);
}
...省略...
}
2、 成员变量解析；
- topicQueueTable：Topic消息队列路由信息，包括topic所在的broker名称，读队列数量，写队列数量，同步标记等信息，rocketmq根据topicQueueTable的信息进行负载均衡消息发送。
- brokerAddrTable：Broker节点信息，包括brokerName，所在集群名称，还有主备节点信息。
- clusterAddrTable：Broker集群信息，存储了集群中所有的BrokerName。
- brokerLiveTable：Broker状态信息，Nameserver每次收到Broker的心跳包就会更新该信息。 3、 通过远程调试查看具体内容(双主双从，两个nameserver)；
ip地址列表
- rocketmq-slave2 172.19.0.7
- rocketmq-slave1 172.19.0.6
- rocketmq-master2 172.19.0.5
- rocketmq-master1 172.19.0.4
- rocketmq-nameserver2 172.19.0.3
- rocketmq-nameserver1 172.19.0.2

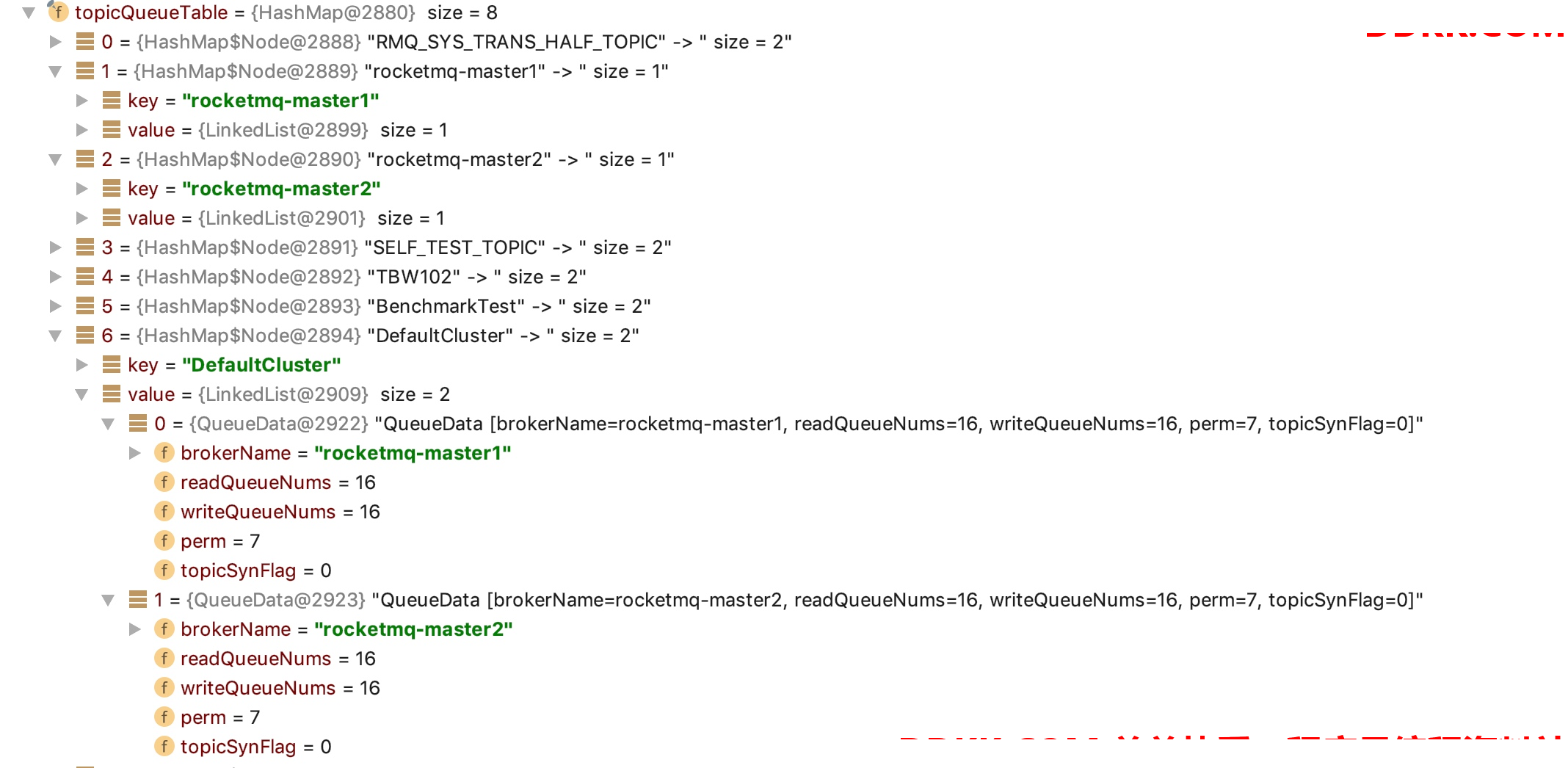

topicQueueTable内容如下
topicQueueTable信息
{
"RMQ_SYS_TRANS_HALF_TOPIC": [
{
"brokerName": "rocketmq-master1",
"perm": 6,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
},
{
"brokerName": "rocketmq-master2",
"perm": 6,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
}
],
"rocketmq-master1": [
{
"brokerName": "rocketmq-master1",
"perm": 7,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
}
],
"rocketmq-master2": [
{
"brokerName": "rocketmq-master2",
"perm": 7,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
}
],
"SELF_TEST_TOPIC": [
{
"brokerName": "rocketmq-master1",
"perm": 6,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
},
{
"brokerName": "rocketmq-master2",
"perm": 6,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
}
],
"TBW102": [
{
"brokerName": "rocketmq-master1",
"perm": 7,
"readQueueNums": 4,
"topicSynFlag": 0,
"writeQueueNums": 4
},
{
"brokerName": "rocketmq-master2",
"perm": 7,
"readQueueNums": 4,
"topicSynFlag": 0,
"writeQueueNums": 4
}
],
"testTopic": [
{
"brokerName": "rocketmq-master1",
"perm": 6,
"readQueueNums": 16,
"topicSynFlag": 0,
"writeQueueNums": 16
},
{
"brokerName": "rocketmq-master2",
"perm": 6,
"readQueueNums": 16,
"topicSynFlag": 0,
"writeQueueNums": 16
}
],
"BenchmarkTest": [
{
"brokerName": "rocketmq-master1",
"perm": 6,
"readQueueNums": 1024,
"topicSynFlag": 0,
"writeQueueNums": 1024
},
{
"brokerName": "rocketmq-master2",
"perm": 6,
"readQueueNums": 1024,
"topicSynFlag": 0,
"writeQueueNums": 1024
}
],
"DefaultCluster": [
{
"brokerName": "rocketmq-master1",
"perm": 7,
"readQueueNums": 16,
"topicSynFlag": 0,
"writeQueueNums": 16
},
{
"brokerName": "rocketmq-master2",
"perm": 7,
"readQueueNums": 16,
"topicSynFlag": 0,
"writeQueueNums": 16
}
],
"OFFSET_MOVED_EVENT": [
{
"brokerName": "rocketmq-master1",
"perm": 6,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
},
{
"brokerName": "rocketmq-master2",
"perm": 6,
"readQueueNums": 1,
"topicSynFlag": 0,
"writeQueueNums": 1
}
]
}

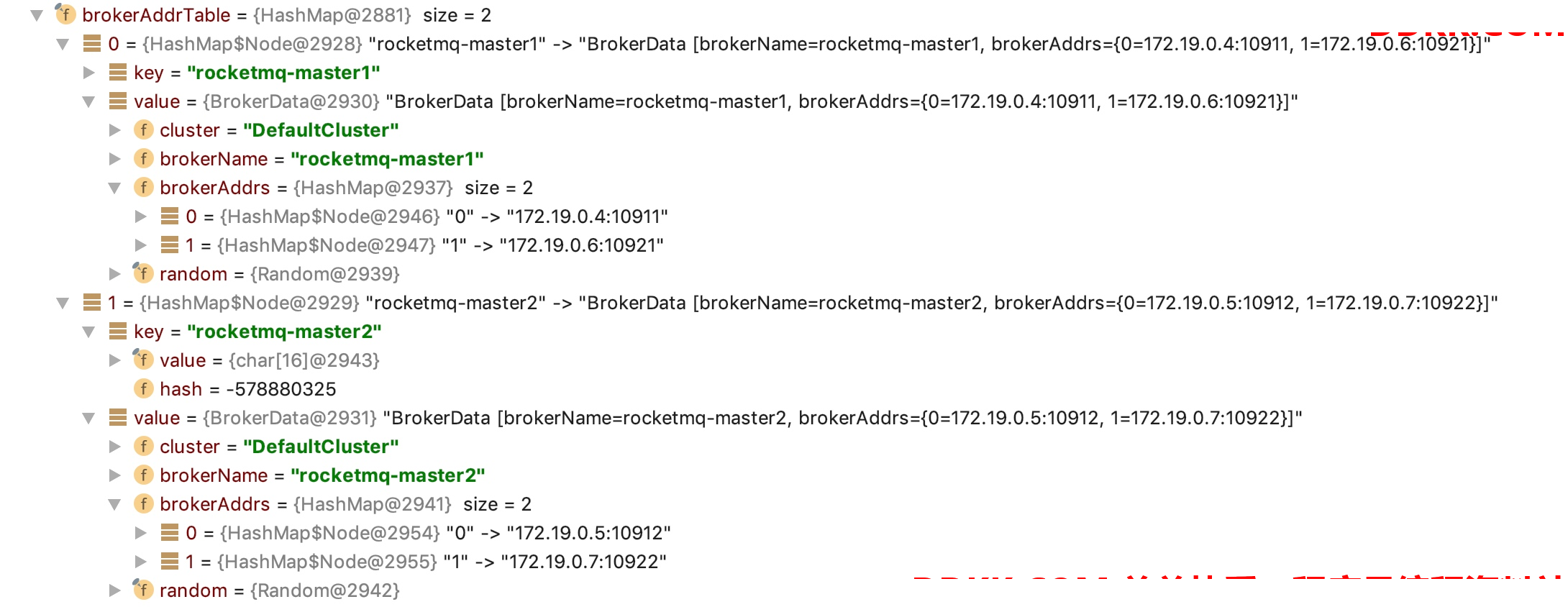

BrokerAddrTable内容如下
brokerAddrTable信息
{
"rocketmq-master1": {
"brokerAddrs": {
0: "172.19.0.4:10911",
1: "172.19.0.6:10921"
},
"brokerName": "rocketmq-master1",
"cluster": "DefaultCluster"
},
"rocketmq-master2": {
"brokerAddrs": {
0: "172.19.0.5:10912",
1: "172.19.0.7:10922"
},
"brokerName": "rocketmq-master2",
"cluster": "DefaultCluster"
}
}
clusterAddrTable内容如下
clusterAddrTable 信息
{
"DefaultCluster": [
"rocketmq-master1",
"rocketmq-master2"
]
}
-
brokerLiveTable内容如下 -
brokerLiveTable信息
{
"172.19.0.7:10922": {
"channel": {
"active": true,
"inputShutdown": false,
"open": true,
"outputShutdown": false,
"registered": true,
"writable": true
},
"dataVersion": {
"counter": 3,
"timestamp": 1562476312530
},
"haServerAddr": "172.19.0.7:10923",
"lastUpdateTimestamp": 1562476361146
},
"172.19.0.5:10912": {
"channel": {
"active": true,
"inputShutdown": false,
"open": true,
"outputShutdown": false,
"registered": true,
"writable": true
},
"dataVersion": {
"counter": 3,
"timestamp": 1562476312530
},
"haServerAddr": "172.19.0.5:10913",
"lastUpdateTimestamp": 1562476360402
},
"172.19.0.4:10911": {
"channel": {
"active": true,
"inputShutdown": false,
"open": true,
"outputShutdown": false,
"registered": true,
"writable": true
},
"dataVersion": {
"counter": 3,
"timestamp": 1562476312525
},
"haServerAddr": "172.19.0.4:10912",
"lastUpdateTimestamp": 1562476359516
},
"172.19.0.6:10921": {
"channel": {
"active": true,
"inputShutdown": false,
"open": true,
"outputShutdown": false,
"registered": true,
"writable": true
},
"dataVersion": {
"counter": 3,
"timestamp": 1562476312525
},
"haServerAddr": "172.19.0.6:10922",
"lastUpdateTimestamp": 1562476360541
}
}
BrokerHouseKeepingService
1、 BrokerHouseKeepingService:实现了ChannelEventListener接口，用于处理Broker状态事件，当Broker失效、异常或者关闭，则将Broker从RouteInfoManager中移除；
public class BrokerHousekeepingService implements ChannelEventListener {
private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);
private final NamesrvController namesrvController;
public BrokerHousekeepingService(NamesrvController namesrvController) {
this.namesrvController = namesrvController;
}
@Override
public void onChannelConnect(String remoteAddr, Channel channel) {
}
@Override
public void onChannelClose(String remoteAddr, Channel channel) {
//通道关闭从RouteInfoManager中移除Broker
this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel);
}
@Override
public void onChannelException(String remoteAddr, Channel channel) {
//通道发生异常从RouteInfoManager中移除Broker
this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel);
}
@Override
public void onChannelIdle(String remoteAddr, Channel channel) {
//通道失效从RouteInfoManager中移除Broker
this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel);
}
}
DefaultRequestProcessor
1、 DefaultRequestProcessor默认请求处理器,根据RequestCode执行相应的处理,核心处理方法processRequest()；
@Override
public RemotingCommand processRequest(ChannelHandlerContext ctx,
RemotingCommand request) throws RemotingCommandException {
if (ctx != null) {
log.debug("receive request, {} {} {}",
request.getCode(),
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
request);
}
switch (request.getCode()) {
//向NameServer追加KV配置
case RequestCode.PUT_KV_CONFIG:
return this.putKVConfig(ctx, request);
//从NameServer获取KV配置
case RequestCode.GET_KV_CONFIG:
return this.getKVConfig(ctx, request);
//从NameServer获取KV配置
case RequestCode.DELETE_KV_CONFIG:
return this.deleteKVConfig(ctx, request);
//获取版本信息
case RequestCode.QUERY_DATA_VERSION:
return queryBrokerTopicConfig(ctx, request);
//注册一个Broker，数据都是持久化的，如果存在则覆盖配置
case RequestCode.REGISTER_BROKER:
Version brokerVersion = MQVersion.value2Version(request.getVersion());
if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
return this.registerBrokerWithFilterServer(ctx, request);
} else {
return this.registerBroker(ctx, request);
}
//卸载一个Broker，数据都是持久化的
case RequestCode.UNREGISTER_BROKER:
return this.unregisterBroker(ctx, request);
//根据Topic获取Broker Name、topic配置信息
case RequestCode.GET_ROUTEINTO_BY_TOPIC:
return this.getRouteInfoByTopic(ctx, request);
//获取注册到Name Server的所有Broker集群信息
case RequestCode.GET_BROKER_CLUSTER_INFO:
return this.getBrokerClusterInfo(ctx, request);
//去掉BrokerName的写权限
case RequestCode.WIPE_WRITE_PERM_OF_BROKER:
return this.wipeWritePermOfBroker(ctx, request);
//从Name Server获取完整Topic列表
case RequestCode.GET_ALL_TOPIC_LIST_FROM_NAMESERVER:
return getAllTopicListFromNameserver(ctx, request);
//从Namesrv删除Topic配置
case RequestCode.DELETE_TOPIC_IN_NAMESRV:
return deleteTopicInNamesrv(ctx, request);
//通过Namespace获取所有的KV List
case RequestCode.GET_KVLIST_BY_NAMESPACE:
return this.getKVListByNamespace(ctx, request);
//获取指定集群下的所有 topic
case RequestCode.GET_TOPICS_BY_CLUSTER:
return this.getTopicsByCluster(ctx, request);
//获取所有系统内置 Topic 列表
case RequestCode.GET_SYSTEM_TOPIC_LIST_FROM_NS:
return this.getSystemTopicListFromNs(ctx, request);
//单元化相关 topic
case RequestCode.GET_UNIT_TOPIC_LIST:
return this.getUnitTopicList(ctx, request);
//获取含有单元化订阅组的 Topic 列表
case RequestCode.GET_HAS_UNIT_SUB_TOPIC_LIST:
return this.getHasUnitSubTopicList(ctx, request);
//获取含有单元化订阅组的非单元化
case RequestCode.GET_HAS_UNIT_SUB_UNUNIT_TOPIC_LIST:
return this.getHasUnitSubUnUnitTopicList(ctx, request);
//更新Name Server配置
case RequestCode.UPDATE_NAMESRV_CONFIG:
return this.updateConfig(ctx, request);
case RequestCode.GET_NAMESRV_CONFIG:
return this.getConfig(ctx, request);
default:
break;
}
return null;
}
NamesrvStartup
1、 NamesrvStartup是NameServer的启动入口,启动的核心是调用NamesrvController的initialize()方法；
public boolean initialize() {
//从文件中加载数据到内存中，默认从${user.home}/namesrv/kvConfig.json文件加载
this.kvConfigManager.load();
//创建服务Server，传入处理连接的ChannelEventListener
this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService);
//默认任务处理器的线程池，每一个RequestCode可以单独设置一个线程池，如果不设置就使用默认的线程池
this.remotingExecutor =
Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_"));
//注册默认处理器，根据requestCode执行相应的处理
this.registerProcessor();
//启动后延迟5秒开始执行，每隔10秒执行一次，对于两分钟没有活跃的broker，关闭连接
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.scanNotActiveBroker();
}
}, 5, 10, TimeUnit.SECONDS);
//启动后延迟1min，每隔10分钟执行打印configTable
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.kvConfigManager.printAllPeriodically();
}
}, 1, 10, TimeUnit.MINUTES);
if (TlsSystemConfig.tlsMode != TlsMode.DISABLED) {
// Register a listener to reload SslContext
try {
fileWatchService = new FileWatchService(
new String[] {
TlsSystemConfig.tlsServerCertPath,
TlsSystemConfig.tlsServerKeyPath,
TlsSystemConfig.tlsServerTrustCertPath
},
new FileWatchService.Listener() {
boolean certChanged, keyChanged = false;
@Override
public void onChanged(String path) {
if (path.equals(TlsSystemConfig.tlsServerTrustCertPath)) {
log.info("The trust certificate changed, reload the ssl context");
reloadServerSslContext();
}
if (path.equals(TlsSystemConfig.tlsServerCertPath)) {
certChanged = true;
}
if (path.equals(TlsSystemConfig.tlsServerKeyPath)) {
keyChanged = true;
}
if (certChanged && keyChanged) {
log.info("The certificate and private key changed, reload the ssl context");
certChanged = keyChanged = false;
reloadServerSslContext();
}
}
private void reloadServerSslContext() {
((NettyRemotingServer) remotingServer).loadSslContext();
}
});
} catch (Exception e) {
log.warn("FileWatchService created error, can't load the certificate dynamically");
}
}
return true;
}
