16、Kubernetes 实战 - ECS 服务停机和环境修复
一，前言
上一篇，介绍了 Secret 镜像的使用；
三台服务每天大概 15 块钱的支出，用一个月也是不少钱；
闲时可以停掉，这样每天只有 4 块钱支出，剩下一大笔；
ECS服务停机后公网 IP 会变化，所以使用到公网 IP 的地方都需要重新配置，恢复环境；
本篇，介绍 ECS 停机后重启的环境修复；
备注：只涉及到目前未知的配置，后续章节可能会新增其他配置项，全部完成之后再补充一篇熊进行说明；
二，ci-service 服务器重启问题
ci-service 服务器停机后重启：
1，导致公网 IP 变化：39.105.212.14 -> 47.94.92.122；
2，服务器重启后：docker 镜像仓库无法访问；
三，环境修复
1，启动 docker 私有镜像仓库
[root@iZ2ze7rkgit9zoa18pxu73Z ~]# cd /usr/local/nexus-3.29.0-02/bin/
[root@iZ2ze7rkgit9zoa18pxu73Z bin]# ./nexus start
WARNING: ************************************************************
WARNING: Detected execution as "root" user. This is NOT recommended!
WARNING: ************************************************************
Starting nexus

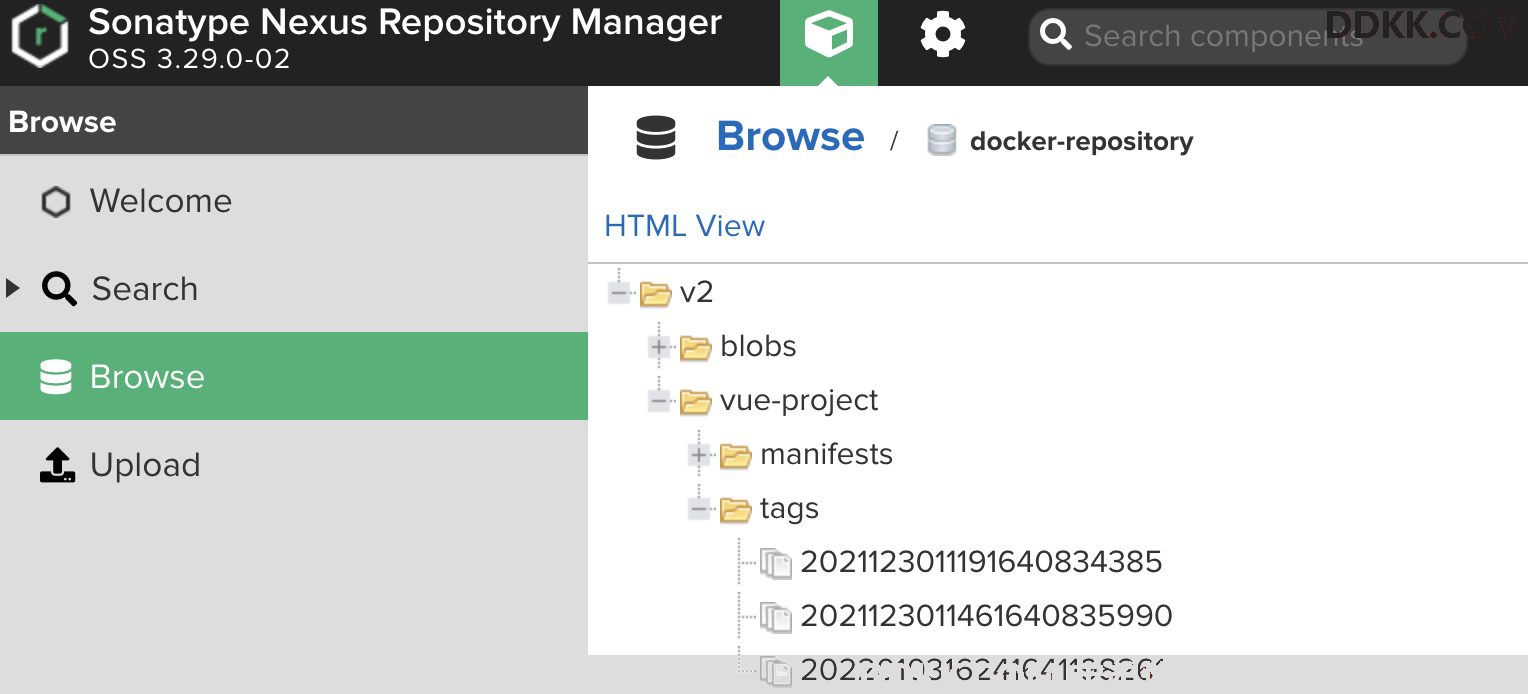

http://47.94.92.122:8081/ 可以正常访问私有镜像仓库，登录后查看镜像正常
2，更新公网 ip
ci-service 服务器公网 IP 变化：39.105.212.14 -> 47.94.92.122；
需要更新所有使用私有库镜像的 yaml 配置文件：
1，ci-service 的 jenkins 构建脚本更新，推送镜像到私有仓库部分
修改前脚本
// 更新前
#！/bin/sh -l
npm install --registry=https://registry.npm.taobao.org
npm run build
time=$(date "+%Y%m%d%H%M%s")
docker build -t 39.105.212.14:8082/vue-project:$time .
docker login -u $DOCKER_LOGIN_USERNAME -p $DOCKER_LOGIN_PASSWORD 39.105.212.14:8082
docker push 39.105.212.14:8082/vue-project:$time

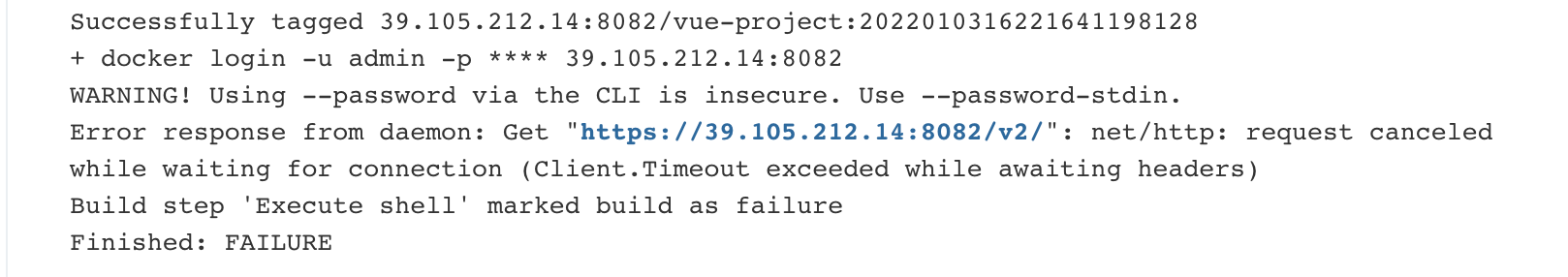

修改前，构建失败
修改后脚本
// 更新后
#！/bin/sh -l
npm install --registry=https://registry.npm.taobao.org
npm run build
time=$(date "+%Y%m%d%H%M%s")
docker build -t 47.94.92.122:8082/vue-project:$time .
docker login -u $DOCKER_LOGIN_USERNAME -p $DOCKER_LOGIN_PASSWORD 47.94.92.122:8082
docker push 47.94.92.122:8082/vue-project:$time

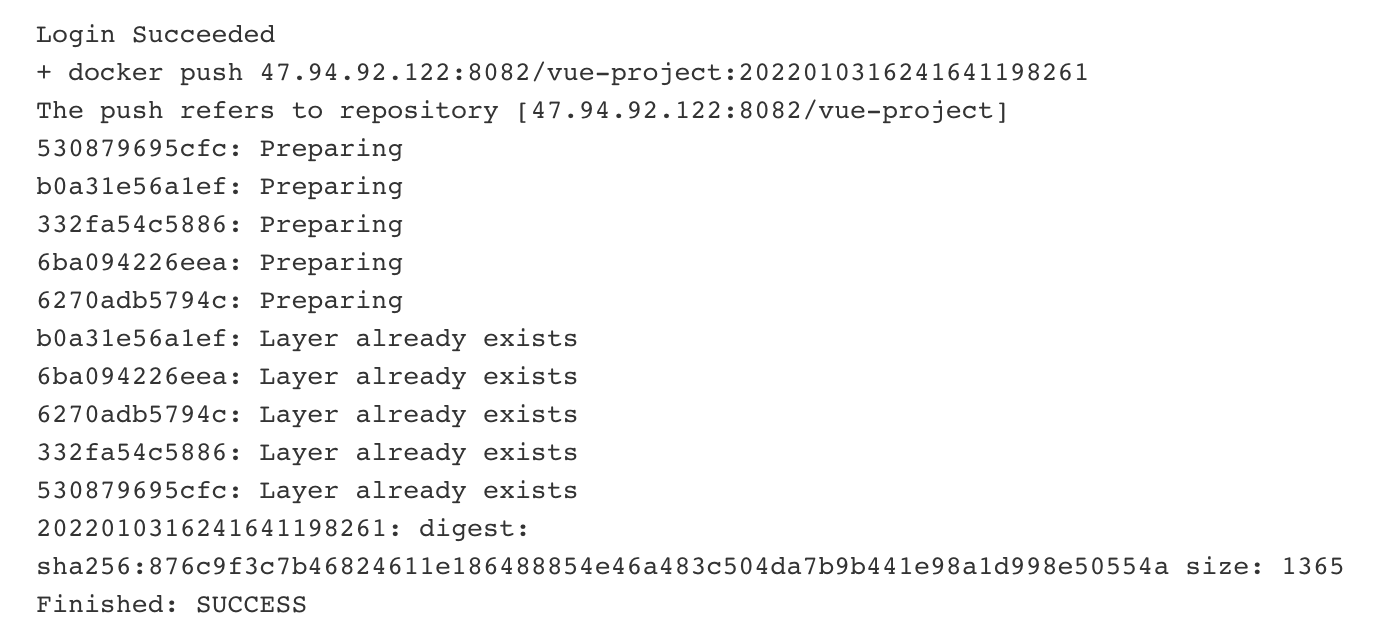

修改后，构建成功，配置修改为正确
2，docker 配置更新，更新私有库注册列表
// 解决 http 问题
[root@iZ2ze7rkgit9zoa18pxu73Z ~]# vi /etc/docker/daemon.json
// 添加不安全的仓库地址：insecure-registries
{
"insecure-registries":["47.94.92.122:8082"],
"registry-mirrors": ["https://fwvjnv59.mirror.aliyuncs.com"]
}
// 重启 docker
[root@iZ2ze7rkgit9zoa18pxu73Z bin]# systemctl restart docker
后面的贴过来，不测试了：
// 测试镜像推送
[root@iZ2ze7rkgit9zoa18pxu73Z ~]# docker push 39.105.212.14:8082/vue-project:2021123011191640834385
The push refers to repository [39.105.212.14:8082/vue-project]
530879695cfc: Preparing
b0a31e56a1ef: Preparing
332fa54c5886: Preparing
6ba094226eea: Preparing
6270adb5794c: Preparing
unauthorized: access to the requested resource is not authorized
// 解决授权问题：登录
[root@iZ2ze7rkgit9zoa18pxu73Z ~]# docker login 39.105.212.14:8082
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
// 再次推送镜像，成功
[root@iZ2ze7rkgit9zoa18pxu73Z ~]# docker push 39.105.212.14:8082/vue-project:2021123011191640834385
The push refers to repository [39.105.212.14:8082/vue-project]
530879695cfc: Pushed
b0a31e56a1ef: Pushed
332fa54c5886: Pushed
6ba094226eea: Pushing 15.42MB/54.05MB
6270adb5794c: Pushing 14.13MB/55.28MB
3，更新已生成的 Sercet 中的 docker-server
涉及“私有镜像库认证”使用的 Sercet :
- 命令行创建的 Sercet : registry-auth
- 通过文件创建的 Sercet : registry-auth-file.yaml
1）命令行创建的Sercet : registry-auth
// 原始 Sercet 的创建命令
[root@k8s-master deployment]# kubectl create secret docker-registry registry-auth \
--docker-username=admin \
--docker-password=****** \
--docker-email=admin@example.org \
--docker-server=39.105.212.14:8082
secret/registry-auth created
// 查询、删除、重新创建
[root@k8s-master ~]# kubectl get secret
NAME TYPE DATA AGE
default-token-q4qxd kubernetes.io/service-account-token 3 12d
registry-auth kubernetes.io/dockerconfigjson 1 4d8h
registry-auth-file kubernetes.io/dockerconfigjson 1 4d8h
secret-opaque Opaque 2 4d8h
secret-opaque-flie Opaque 2 4d8h
// 删除
[root@k8s-master ~]# kubectl delete secret registry-auth
secret "registry-auth" deleted]
// 重新创建
[root@k8s-master ~]# kubectl create secret docker-registry registry-auth \
--docker-username=admin \
--docker-password=****** \
--docker-email=admin@example.org \
--docker-server=47.94.92.122:8082
secret/registry-auth created
2）registry-auth-file.yaml
// 原始 Sercet 的创建
vi registry-auth-file.yaml
apiVersion: v1
kind: Secret
metadata:
name: registry-auth-file
data:
.dockerconfigjson: eyJhdXRocyI6eyIzOS4xMDUuMjEyLjE0OjgwODIiOnsidXNlcm5hbWUiOiJhZG1pbiIsInBhc3N3b3JkIjoiV3pAMTk4ODA4MTgiLCJlbWFpbCI6ImFkbWluQGV4YW1wbGUub3JnIiwiYXV0aCI6IllXUnRhVzQ2VjNwQU1UazRPREE0TVRnPSJ9fX0=
type: kubernetes.io/dockerconfigjson
查看registry-auth，使用 .dockerconfigjson 更新：
// 读取
[root@k8s-master deployment]# kubectl get secret registry-auth -o yaml
apiVersion: v1
data:
.dockerconfigjson: eyJhdXRocyI6eyI0Ny45NC45Mi4xMjI6ODA4MiI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJXekAxOTg4MDgxOCIsImVtYWlsIjoiYWRtaW5AZXhhbXBsZS5vcmciLCJhdXRoIjoiWVdSdGFXNDZWM3BBTVRrNE9EQTRNVGc9In19fQ==
kind: Secret
metadata:
creationTimestamp: "2022-01-03T14:33:48Z"
managedFields:
- apiVersion: v1
fieldsType: FieldsV1
fieldsV1:
f:data:
.: {}
f:.dockerconfigjson: {}
f:type: {}
manager: kubectl-create
operation: Update
time: "2022-01-03T14:33:48Z"
name: registry-auth
namespace: default
resourceVersion: "1594980"
uid: 06e43c6e-7e40-4d42-ad5a-427fd0698747
type: kubernetes.io/dockerconfigjson
// 解码验证
[root@k8s-master deployment]# echo eyJhdXRocyI6eyI0Ny45NC45Mi4xMjI6ODA4MiI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJXekAxOTg4MDgxOCIsImVtYWlsIjoiYWRtaW5AZXhhbXBsZS5vcmciLCJhdXRoIjoiWVdSdGFXNDZWM3BBTVRrNE9EQTRNVGc9In19fQ== | base64 -d
{"auths":{"47.94.92.122:8082":{"username":"admin","password":"******","email":"admin@example.org","auth":"YWRtaW46V3pAMTk4ODA4MTg="}}}
// 修改
[root@k8s-master deployment]# vi registry-auth-file.yaml
apiVersion: v1
kind: Secret
metadata:
name: registry-auth-file
data:
.dockerconfigjson: eyJhdXRocyI6eyI0Ny45NC45Mi4xMjI6ODA4MiI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJXekAxOTg4MDgxOCIsImVtYWlsIjoiYWRtaW5AZXhhbXBsZS5vcmciLCJhdXRoIjoiWVdSdGFXNDZWM3BBTVRrNE9EQTRNVGc9In19fQ==
type: kubernetes.io/dockerconfigjson
// 生效
[root@k8s-master deployment]# kubectl apply -f registry-auth-file.yaml
secret/registry-auth-file configured
// 读取
[root@k8s-master deployment]# kubectl get secret registry-auth-file -o yaml
apiVersion: v1
data:
.dockerconfigjson: eyJhdXRocyI6eyI0Ny45NC45Mi4xMjI6ODA4MiI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJXekAxOTg4MDgxOCIsImVtYWlsIjoiYWRtaW5AZXhhbXBsZS5vcmciLCJhdXRoIjoiWVdSdGFXNDZWM3BBTVRrNE9EQTRNVGc9In19fQ==
kind: Secret
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"v1","data":{".dockerconfigjson":"eyJhdXRocyI6eyI0Ny45NC45Mi4xMjI6ODA4MiI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJXekAxOTg4MDgxOCIsImVtYWlsIjoiYWRtaW5AZXhhbXBsZS5vcmciLCJhdXRoIjoiWVdSdGFXNDZWM3BBTVRrNE9EQTRNVGc9In19fQ=="},"kind":"Secret","metadata":{"annotations":{},"name":"registry-auth-file","namespace":"default"},"type":"kubernetes.io/dockerconfigjson"}
creationTimestamp: "2021-12-30T05:58:33Z"
managedFields:
- apiVersion: v1
fieldsType: FieldsV1
fieldsV1:
f:data:
.: {}
f:.dockerconfigjson: {}
f:metadata:
f:annotations:
.: {}
f:kubectl.kubernetes.io/last-applied-configuration: {}
f:type: {}
manager: kubectl-client-side-apply
operation: Update
time: "2021-12-30T05:58:33Z"
name: registry-auth-file
namespace: default
resourceVersion: "1595453"
uid: c865aeac-daa1-425a-90d3-cfd70446ccb9
type: kubernetes.io/dockerconfigjson
// 验证
[root@k8s-master deployment]# echo eyJhdXRocyI6eyI0Ny45NC45Mi4xMjI6ODA4MiI6eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJXekAxOTg4MDgxOCIsImVtYWlsIjoiYWRtaW5AZXhhbXBsZS5vcmciLCJhdXRoIjoiWVdSdGFXNDZWM3BBTVRrNE9EQTRNVGc9In19fQ== | base64 -d
{"auths":{"47.94.92.122:8082":{"username":"admin","password":"******","email":"admin@example.org","auth":"YWRtaW46V3pAMTk4ODA4MTg="}}}
修改后，重新生效配置，并查看 Sercet 内容完成验证；
4，更新 deployment-v4.yaml 的镜像地址
[root@k8s-master deployment]# vi deployment-v4.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: v4 修改
spec:
selector:
matchLabels:
app: v4 修改
replicas: 1
template:
metadata:
labels:
app: v4修改
spec:
containers:
- name: vue-project
image: 47.94.92.122:8082/vue-project:2021123011191640834385 修改
ports:
- containerPort: 80
[root@k8s-master deployment]# kubectl apply -f deployment-v4.yaml
deployment.apps/v4 configured
[root@k8s-master deployment]# kubectl get pods
NAME READY STATUS RESTARTS AGE
user-v1-84bdcc465b-vxvl2 1/1 Running 0 4d7h
v4-57b4cf7fd9-zcl45 0/1 ImagePullBackOff 0 4d7h
v4-fb4cd75f5-bf2pf 0/1 ErrImagePull 0 33s
[root@k8s-master deployment]# kubectl describe pod v4-fb4cd75f5-bf2pf
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 67s default-scheduler Successfully assigned default/v4-fb4cd75f5-bf2pf to k8s-node
Normal Pulling 28s (x3 over 66s) kubelet Pulling image "47.94.92.122:8082/vue-project:2021123011191640834385"
Warning Failed 16s (x3 over 66s) kubelet Failed to pull image "47.94.92.122:8082/vue-project:2021123011191640834385": rpc error: code = Unknown desc = Error response from daemon: Get "https://47.94.92.122:8082/v2/": http: server gave HTTP response to HTTPS client
Warning Failed 16s (x3 over 66s) kubelet Error: ErrImagePull
Normal BackOff 4s (x3 over 66s) kubelet Back-off pulling image "47.94.92.122:8082/vue-project:2021123011191640834385"
Warning Failed 4s (x3 over 66s) kubelet Error: ImagePullBackOff
生效配置，进入pod验证拉取镜像时，实际访问的镜像地址：47.94.92.122 修改生效
5，本地镜像仓库列表
删除无效的老地址镜像
[root@iZ2ze7rkgit9zoa18pxu73Z bin]# docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
39.105.212.14:8082/vue-project 2021123011191640834385 cf09bb54e87e 4 days ago 110MB
39.105.212.14:8082/vue-project 2021123011461640835990 cf09bb54e87e 4 days ago 110MB
39.105.212.14:8082/vue-project 2022010316221641198128 cf09bb54e87e 4 days ago 110MB
47.94.92.122:8082/vue-project 2022010316241641198261 cf09bb54e87e 4 days ago 110MB
cicdproject latest 2e9269d7c724 2 weeks ago 110MB
node latest 058747996654 4 weeks ago 992MB
nginx 1.15 53f3fd8007f7 2 years ago 109MB
四，结尾
本篇，介绍了 ci-server 服务器重启后的环境修复；
下一篇，介绍 k8s 的服务间调用，k8s 服务发现；
